screen：27inch、1920*1080、60/75Hz
Brightness：250±20Lux
CPU：Intel® Core™ i5-12450H
Memory：SO-DIMM DDR4 16GB 3200MHz
Storage： M.2 2280 SSD 512GB

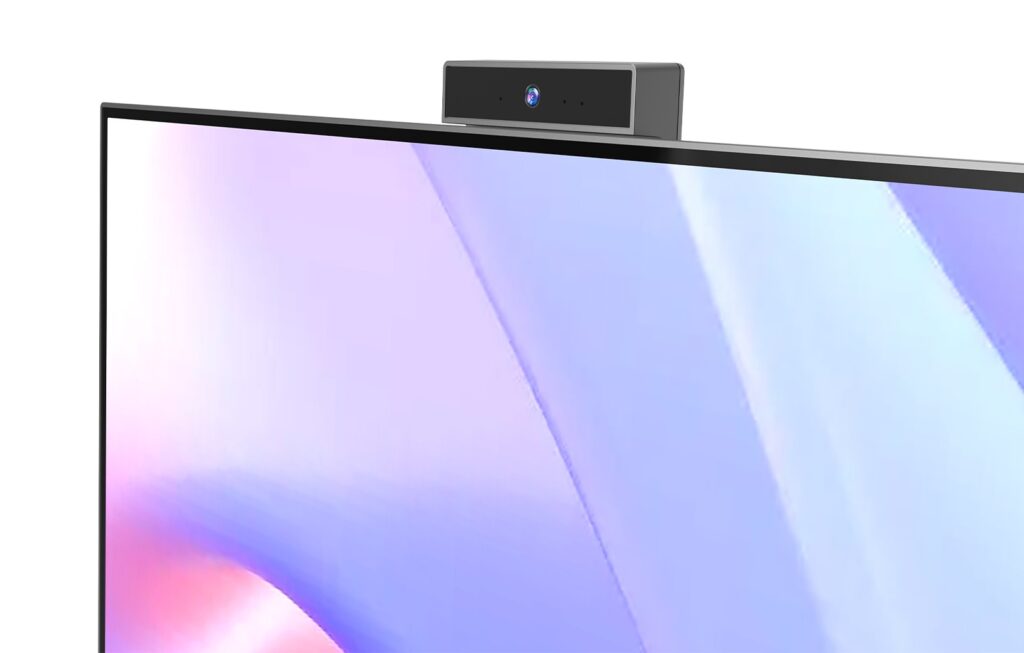

Camera：3.0 MP
WIFI：M.2 for WIFI(PCIe+USB & CNVi)（optional）
BT：BT 5.2
Adapter：DCφ5.0×2.5mm DC 19V/6.32A（Match based on motherboard power）
System：Windows 11
| System Physical Standard Configuration | ||
| Type | Detail | Descriptions |
| Product Form | Product Form | AIO |
| Size | 613.3mm*368.3mm | |
| Material | plastic | |
| Colour | dark metallic color | |
| Pedestal | fixed base | |
| Weight | / | |
| LCD | Resolution | 1920*1080(60/75Hz)（optional） |
| Aspect ratio | 27” 16：9 | |
| Brightness | 250±20 cd/m2 | |
| connector | LVDS | |
| CPU | Type | Intel® Core™ i5-12450H |
| GPU | type | Intel® UHD Graphics for 12th Gen Intel® Processors |
| RAM | SO-DIMM Slot*2 | 2*SO-DIMM DDR4, Max. 64GB 3200MHz |
| SSD | M.2 Slot *1 | 1*M.2 slot (Key M) 2280 SSD (supports PCIe 3.0 x4 or SATA modes)128/256/512GB/1TB（optional） |
| Hard disk | support | NO |
| Camera | support | 3.0/5.0/8.0MP（optional） |
| Speaker | Box | 2* built-in 4Ω/3W speakers |
| MIC | support | DMIC*2（optional） |
| TPM | support | TPM 2.0（optional） |
| Fingerprint | support | optional |
| WIFI | WIFI module | M.2 for WIFI(PCIe+USB & CNVi) |
| BT | support | BT4.2/5.1/5.2 |
| Ethernet | support | 1*10/100/1000Mbps |
| DC IN | DC *1 | φ5.0x2.5mm DC 19V/6.32A（Match based on motherboard power） |

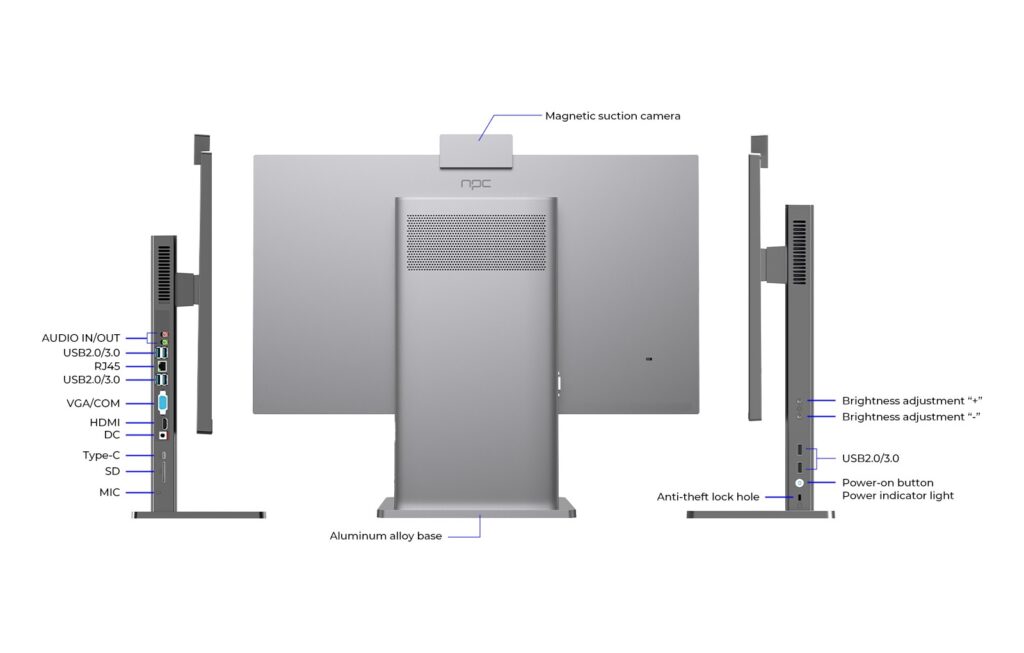

| HDMI OUT | HDMI*1 | 1* HDMI 1.4 typeA |
| DP/VGA/COM | DP/VGA/COM*1 | 1* VGA |
| USB | USB-A*4 | 2* USB3.2 Gen2+4*USB2.0 |
| RJ45 | RJ45*1 | 1*RJ45 10/100/1000Mbps |
| Audio OUT | Audio OUT jack*1 | 1*Audio OUT jack |
| MIC IN | MIC IN jack*1 | 1*MIC IN jack |
| USB-A | USB2.0/3.0*2 | 2* USB3.2 Gen2/2*USB2.0（optional） |
| USB-C | USB-C*1 | 1*date Type-C（optional） |
| SD card | Three in one card reader*1 | 1* Three in one card reader（optional） |
| Headphone Combo jack | Headphone Combo jack*1 | 1*Headphone Combo jack（optional） |
| Adapter | standard | DCφ5.0x2.5mm DC 19V/6.32A（Match based on motherboard power） |
| Keyboard | standard | optional |
| Mouse | standard | optional |
| OS | OS Support | Windows 10(64bit), Windows 11， Linux |
| office | Yes(optional) | |
