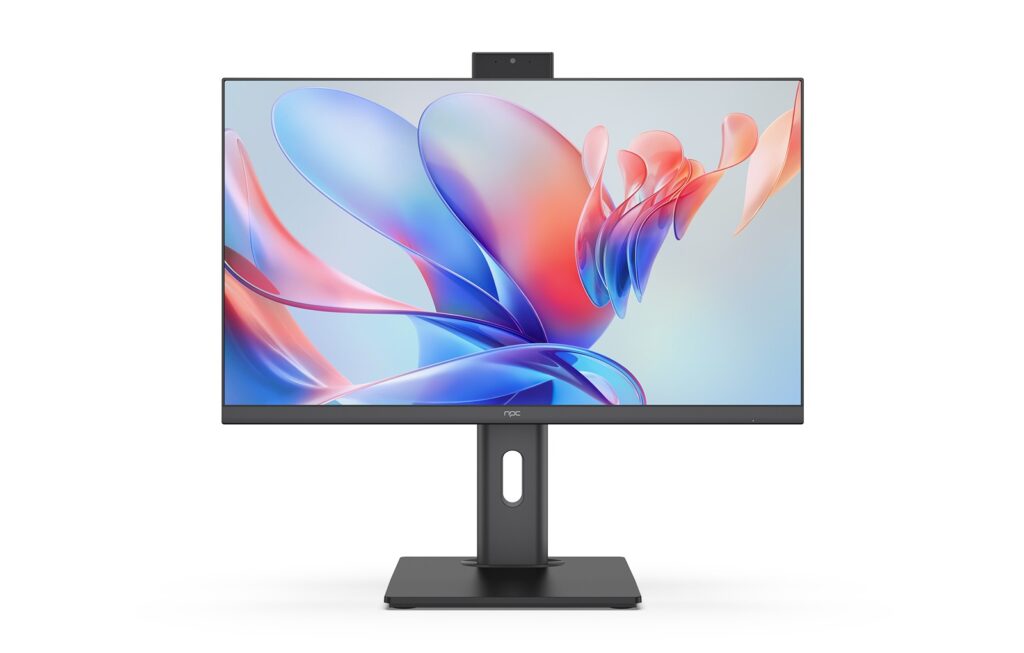

Screen：23.8inches、1920*1080、100Hz、
Brightness：230±20Lux
CPU:Intel® Core™ i5-12450H Processor
Memory：SO-DIMM DDR4 16GB 3200MHz
Storage：M.2 2280 SSD 512GB
Camera：5.0MP
WIFI：M.2 for WIFI(PCIe+USB & CNVi)（optional）
BT：BT 5.1
Adapter：DC 19V/6.32A
System：Windows 11
| System Physical Standard Configuration | ||
| Type | Detail | Descriptions |
| Product Form | Product Form | AIO |

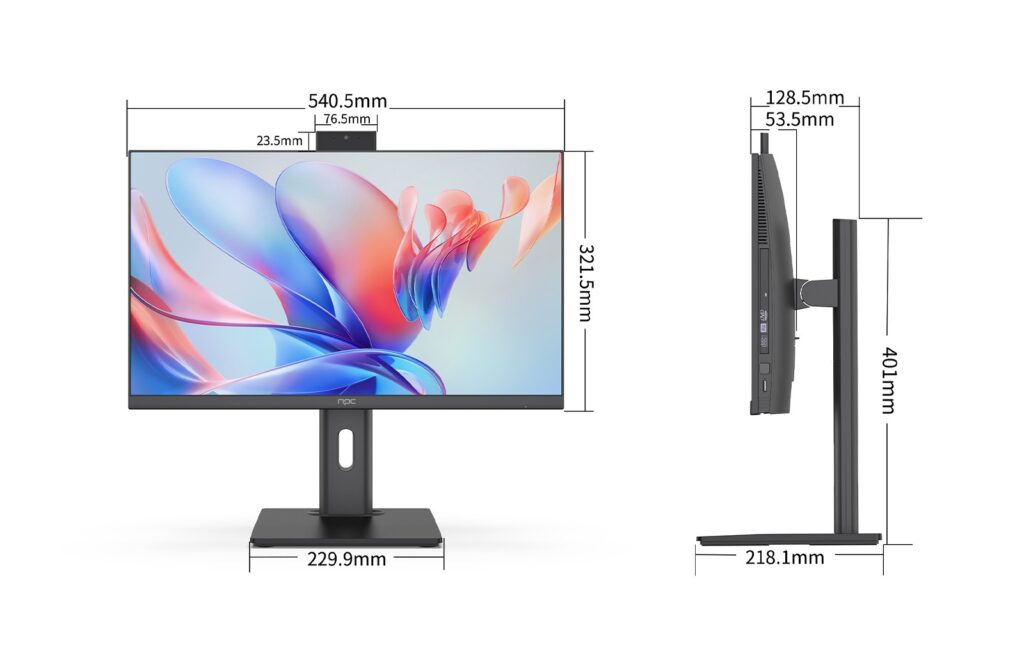

| Size | 540.5mm*321.5mm | |
| Material | plastic | |
| Colour | Alpha/Black/White（optional） | |

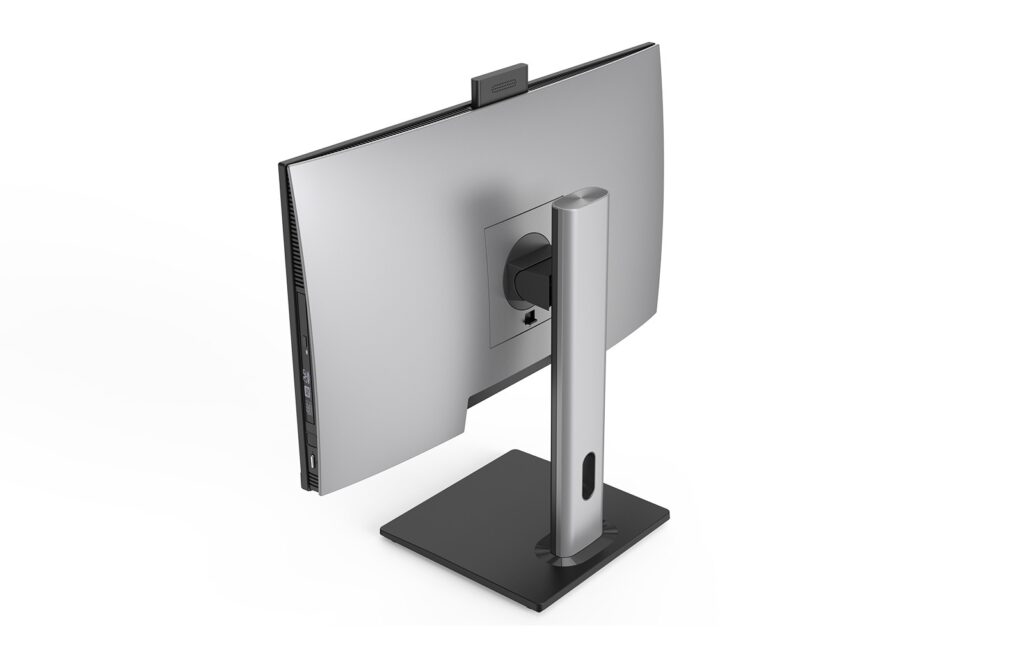

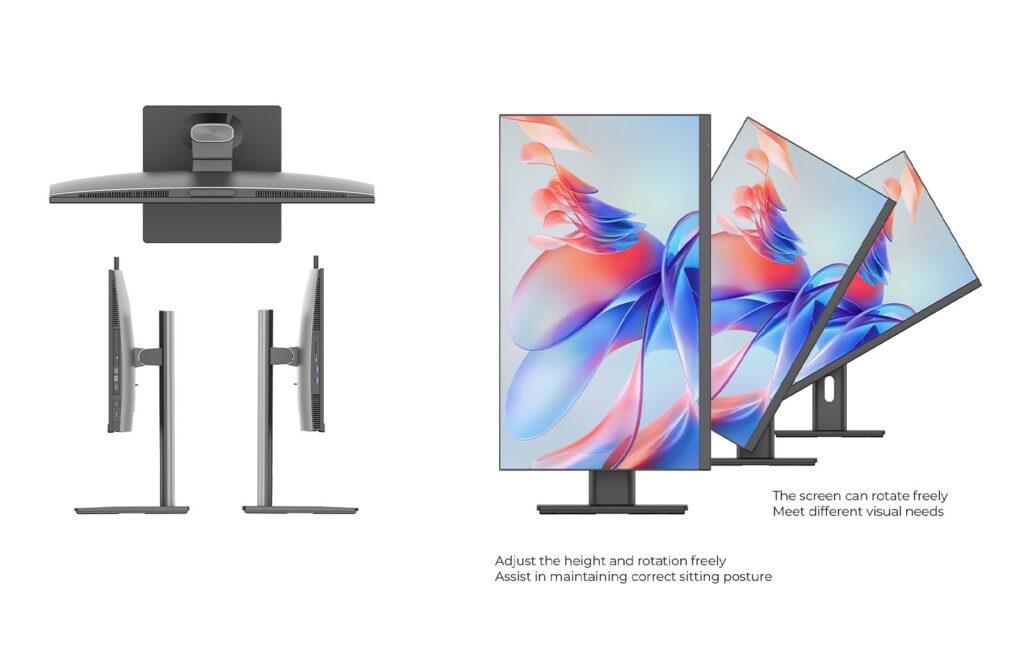

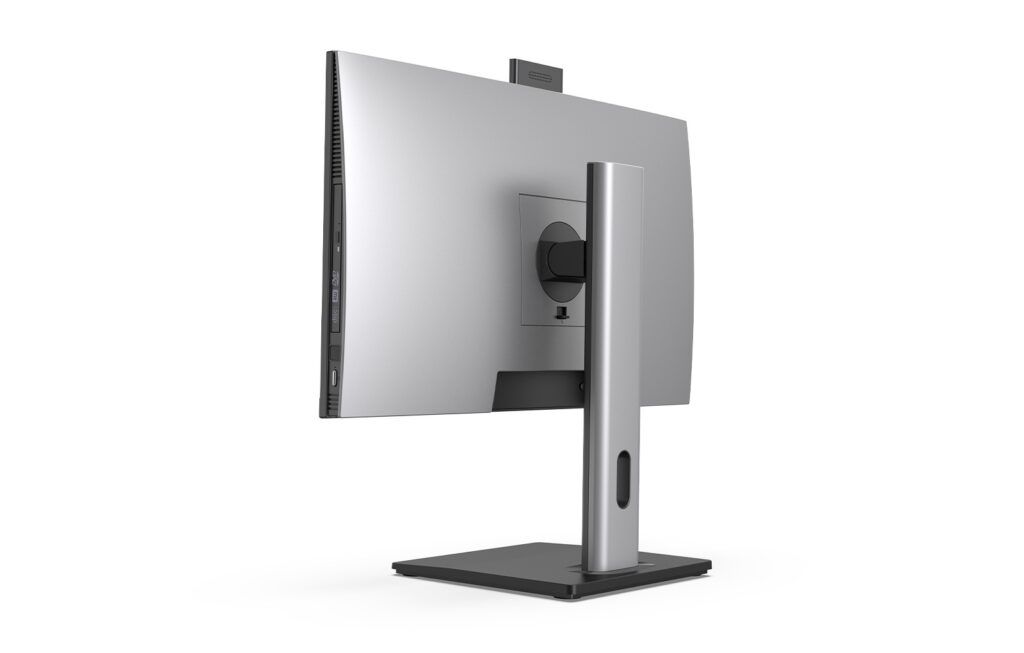

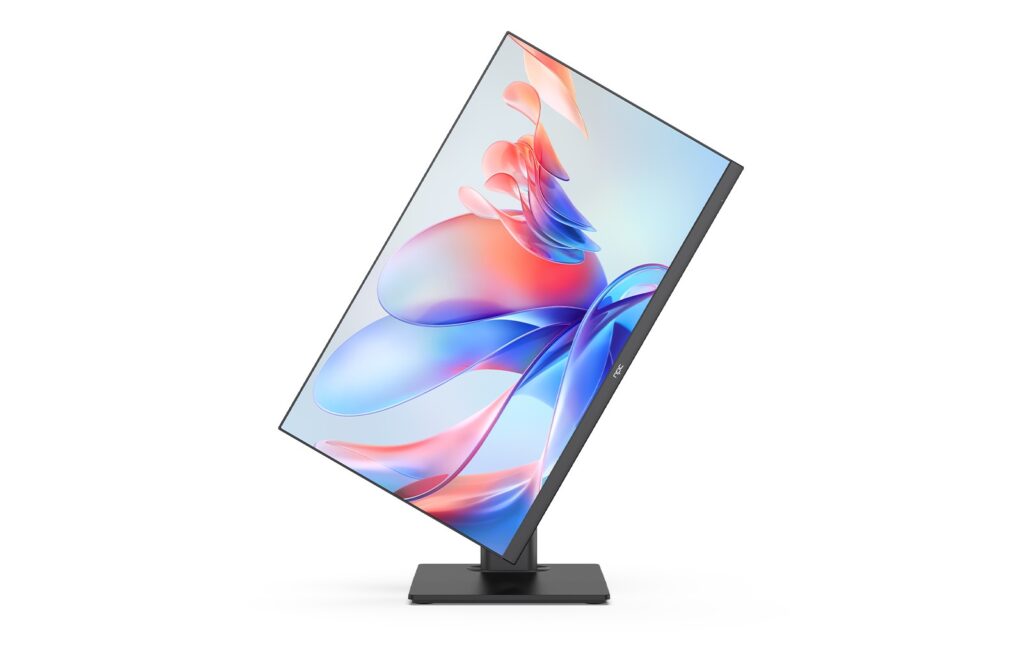

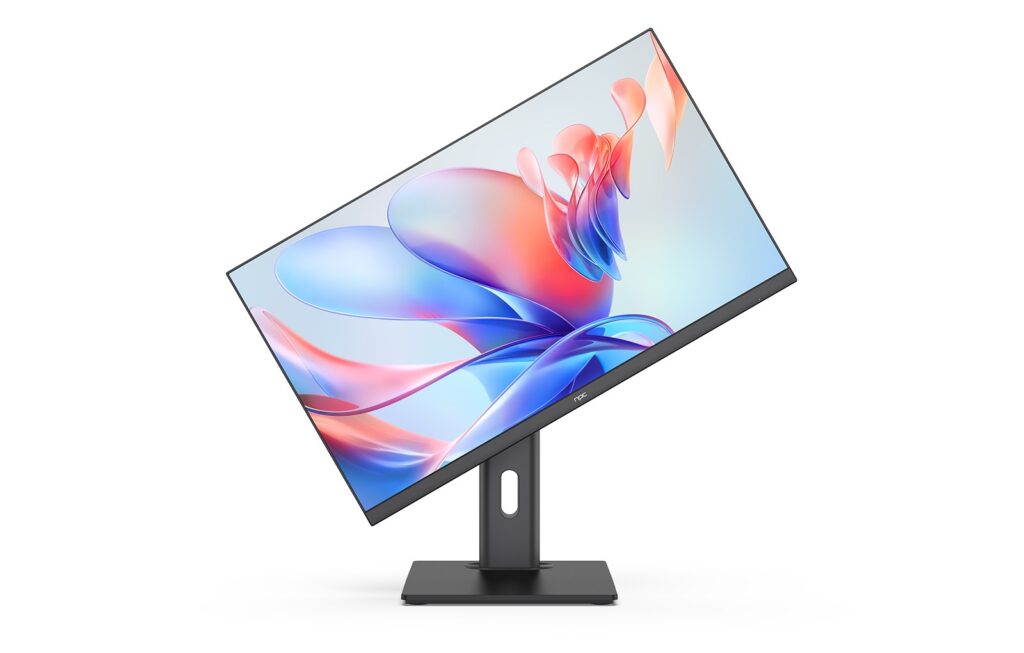

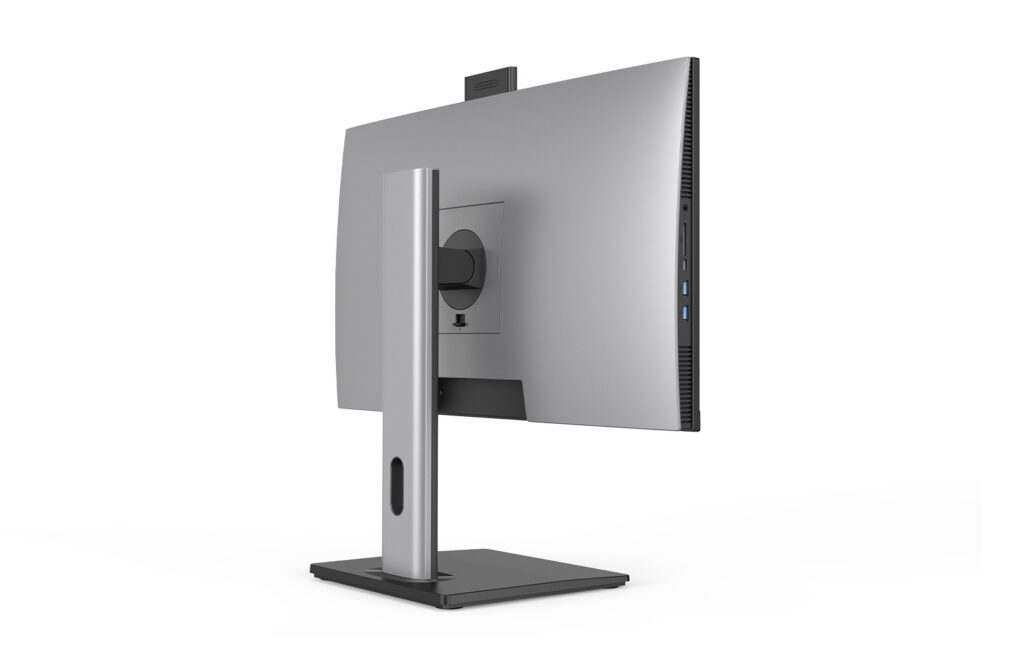

| Pedestal | ascending and descending+swivel | |
| LCD | Resolution | 1920*1080(60Hz/100Hz)（optional） |
| Aspect ratio | 23.8" 16：9 | |
| Brightness | 230±20 cd/m2 | |
| connector | LVDS | |
| CPU | Type | Intel® Core™ i5-12450H Processor |
| GPU | type | Intel® UHD Graphics for 12th Gen Intel® Processors |
| RAM | SO-DIMM Slot*2 | SO-DIMM DDR4 16GB 3200MHz |
| SSD | M.2 Slot *1 | M.2 2280 SSD 512GB |
| Hard disk | support | 1*2.5 inch notebook SATA connector（optional） |
| Camera | support | 5.0MP |
| Speaker | Box | 2* built-in 4Ω/3W speakers |
| MIC | support | DMIC*2（optional） |
| TPM | support | TPM 2.0（optional ） |
| Fingerprint | support | optional |
| WIFI | WIFI module | M.2 for WIFI(PCIe+USB & CNVi) |
| BT | support | BT 5.1 |
| Ethernet | support | 1*10/100/1000Mbps |

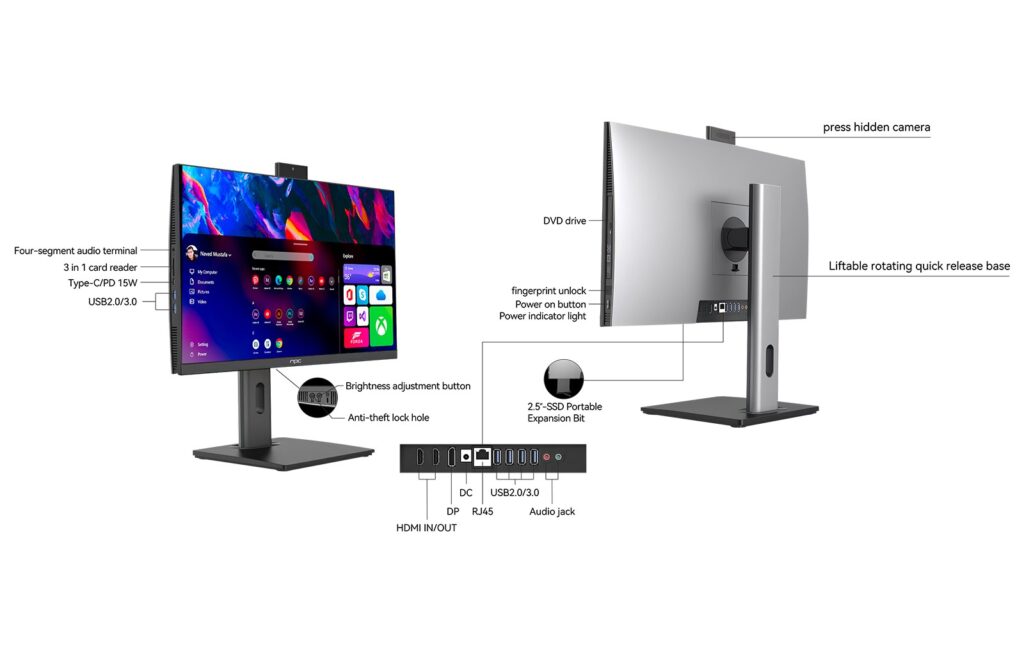

| DC IN | DC *1 | φ5.0x2.5mm DC 19V/6.32A |
| HDMI OUT | HDMI*1 | 1* HDMI 1.4 typeA |
| DP/VGA/COM | DP/VGA/COM*1 | 1* DP |
| USB | USB-A*4 | 2* USB3.2 Gen2+2*USB2.0 |
| RJ45 | RJ45*1 | 1*RJ45 10/100/1000Mbps |
| Audio OUT | Audio OUT jack*1 | 1*Audio OUT jack |
| MIC IN | MIC IN jack*1 | 1*MIC IN jack |
| USB-A | USB2.0/3.0*2 | 2* USB3.2 Gen2/2*USB2.0（optional） |
| USB-C | USB-C*1 | 1* Type-C 2.0 |
| SD card | Three in one card reader*1 | 1* Three in one card reader |
| Headphone Combo jack | Headphone Combo jack*1 | 1* Headphone Combo jack |
| Adapter | standard | DCφ5.0x2.5mm DC 19V/6.32A |
| Keyboard | standard | optional |
| Mouse | standard | optional |
| OS | OS Support | Windows 11 |
| office | Yes(optional) | |
